US $52 - 53 / Piece
Product Name: gps dog voice intercome pet collar For Android IOS Phone with long battery |
| Port: | Shenzhen |
|---|---|
| Supply Ability: | 20000 Piece/Pieces per Month |
| Payment Terms: | T/T,Western Union,PayPal |
| Packaging Details: | pet gps tracker 120X90X60mm |
|---|---|
| Delivery Details: | 2-3ays |

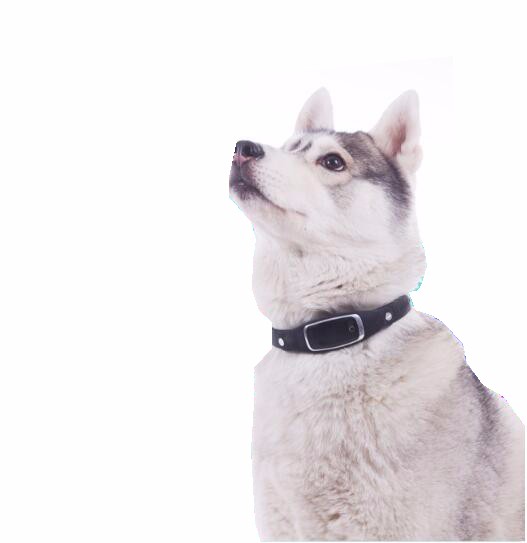

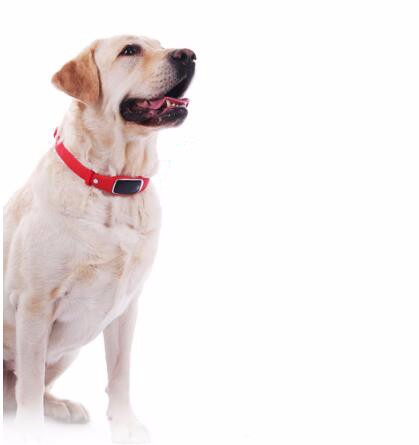

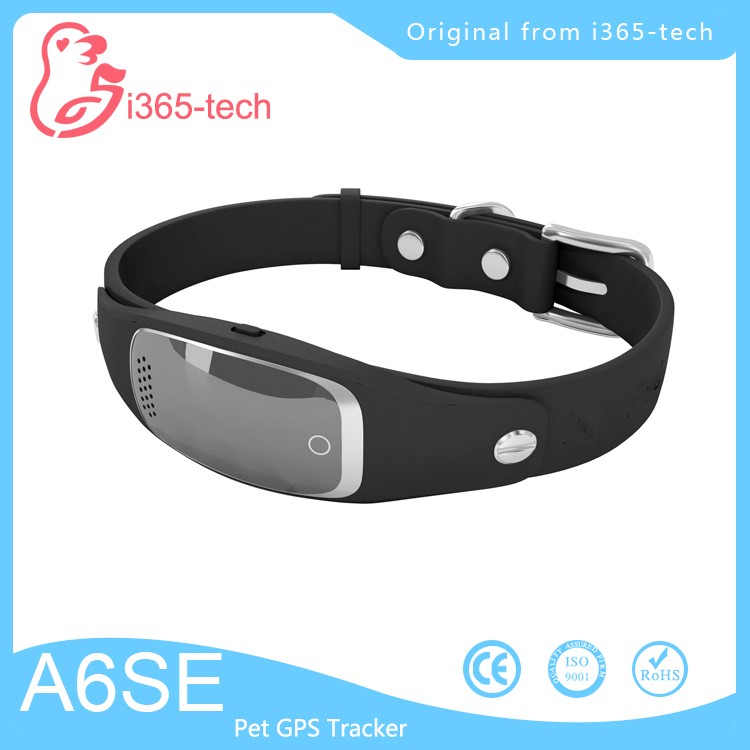

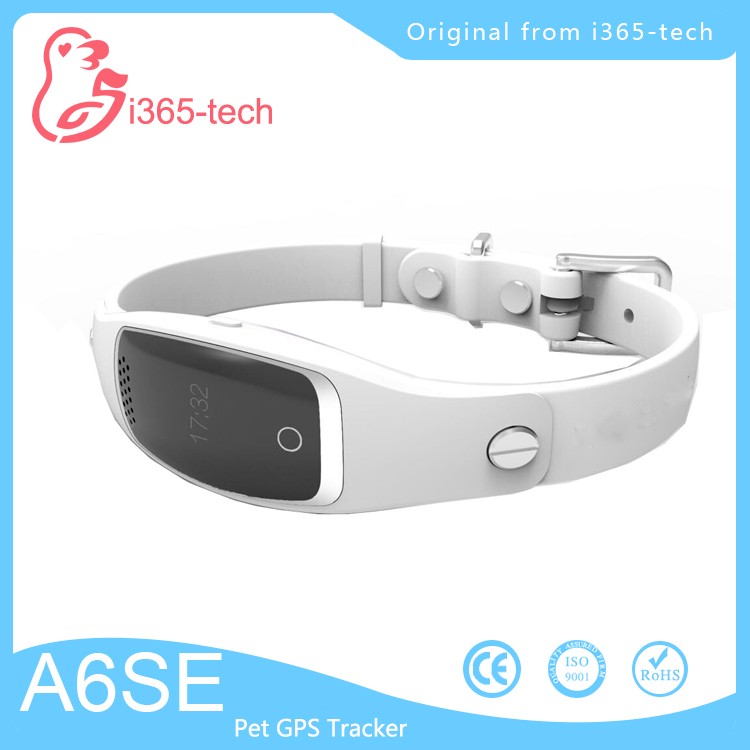

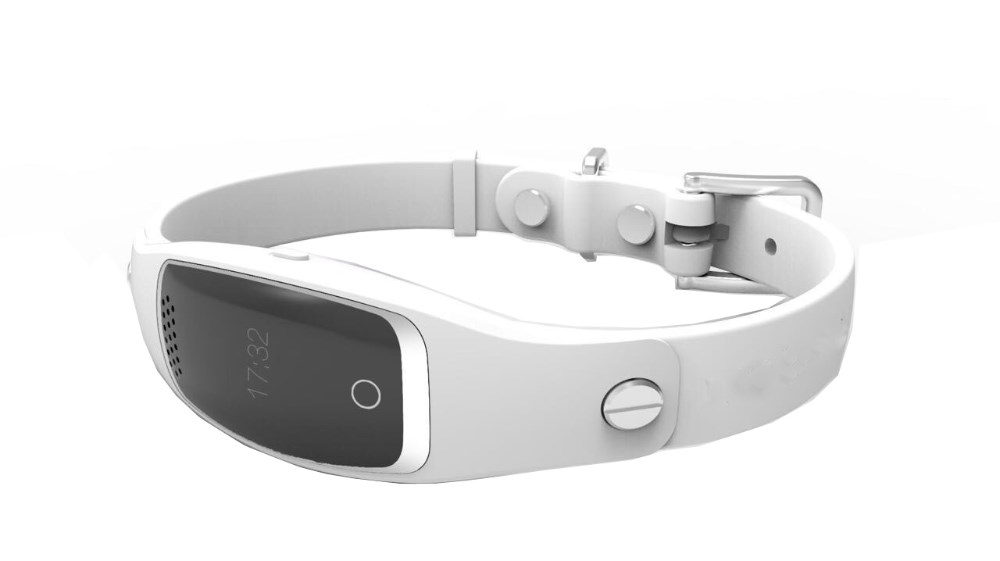

gps dog voice intercome pet collar For Android IOS Phone with long battery
gps dog S1 supports GPS, WIFI and LBS positioning, GPS and 3D Acceleration Assisted Positioning are mainly for outdoor positioning, WIFI, 3D Acceleration Assisted Positioning and LBS manly for indoor position.
1. GPS + LBS + WiFi + 3D Acceleration Assisted Positioning
The device supports GPS, WIFI and LBS positioning, GPS and 3D Acceleration Assisted Positioning are mainly for outdoor positioning,
WIFI, 3D Acceleration Assisted Positioning and LBS manly for indoor position.
2. Geofence
After the geofence is setup, you will get alert notice when the pets are out of the range of the setup circle, which will secure the pets’ safety and keep you a p
eace of mind.
3. Historical route
The device will keep a record of the historical route for three months; user can check the records on smartphone
4. Voice Interaction
Interact with your dog, activity monitor of your pet
SPECIFICATIONS
| Product type | Smart gps dog Collar | ||
| Main features | GPS+WIFI+LBS multi-mode precise positioning,voice intercome, intelligent dormancy,real time tracking | ||
| 1.Structure parts | |||
| Structure parts | Type | Specification | Remarks |
| ID design | fashion and luxury | ||

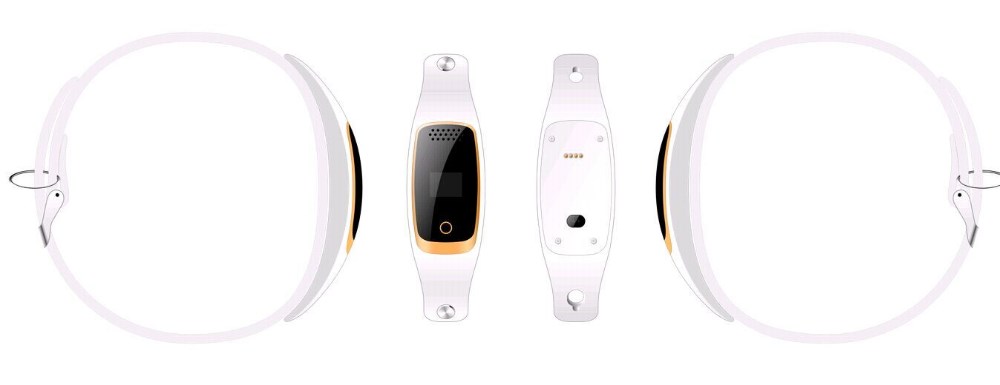

| Whole machine size | 120 LengthX35 WidthX12.5mm Thickness (Pet collar inner diameter:600mm) | ||
| Color | white, black, red | ||
| Button | 1 button( Poweror off button) | ||
| Screen | 0.66 inch OLED | ||
| gps antenna | High sensitive ceramics active antenna | ||
| Battery | 500mAh | ||
| SIM card | 1 pc | ||
| G-sensor | supported | ||
| I/O port | Magnetic suction charging | ||
| 2. Hardware parts | |||
| Hardware parts | Chip | MTK MT6261 | |
| GPS chip | MTK3337 | ||
| GPRS | Class12 | ||
| GPS singal | L1,1575.42MHz C/A code | ||
| GPS channels | 20 channels | ||
| GPS chip receive sensitivity | Tracking sensitivity:-159dBm,capture sensitivity:-143dBm | ||
| GPS location accuracy | 5~15M | ||
| WIFI location accuracy | 5-30M | ||
| LBS location accuracy | 100-1000M | ||
| Minimum standby current | less than 0.5 mA | ||
| Average standby current | less than 2.5 mA | ||
| Average working current | less than 55mA | ||
| Working temperature | -20~70℃ | ||
| Working humidity | 5% to 95% non-congealable | ||
| Test and certification | Can pass CAT, 3C and CE certification | ||
| GPS antenna | Built-in high sensitivity ceramic antenna | ||
| GSM antenna | Built-in four frequency PIFA antenna | ||
| Bluetooth | BT 3.0 (Usually Off) | ||
| G-Sensor | Supported | ||
| Speaker | AAC 1609 speaker(The same supplier with Apple phone) | ||
| MIC | Supported | ||
| 3. Software parts | |||
| Software parts | Support operate system | Support 2.3 and above system, IOS5.0 and above | |
| Voice intercom | Support voice intercome function | ||
| Call function | Support voice monitor function | ||
| Language support | Simplified Chinese, English | Compatible with support for multi-languages | |
| GSM+GPRS+GPS+WIFI | GPS+WIFI+LBS multi-mode positioning | ||
| Support AGPS | Cool start 26 seconds positioning | ||
| Power management | Ultra-low consumption of power managment, intelligent dormancy | ||
| Smart Geo-fence | Can automatic alarm when out of range | ||
| Historicial route | Can check three months' historical route | ||
| Wireless upgrading | Software remote upgrading, remote debugging maintence , remote setting parameters | ||
Why choose us
Holding Product Design Patent
Our products have private and exclusive mold owned by us, we own the product design patents, there is no any other manufacturer that has the exactly the same product as ours. We can control the distribution channel pricings, so if you cooperate with us, you can enjoy higher benefit margin in your country.
Owning GPS Platform and GPS App
Developed by our technical teams, we have stable GPS platform, which is experienced in many countries, such as Russia, the US, Germany, France and more.
Accurate and Faster GPS Positioning
By cooperating with MTK, our technical team developed GPS locator which can get GPS signal as soon as 0.1 second, the latest MTK2503 chip can offer faster positioning.
High Performance in Network Signal Level
Our GPS locators can reach 25dB signal level, while some cheap products in the GPS market can only reach 20dB. This good signal performance could offer customer more powerful voice monitoring support, and better GPS positioning.
Excellent Workmanship
By spray painting, UV processing and vacuum coating, various customers feel our GPS locator with high end effect.
