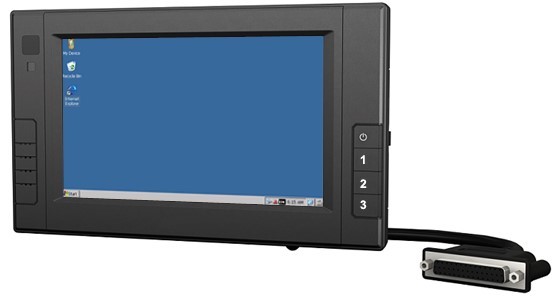

7 inch IP64 Rugged WinCE 7.0 / Android 2.3 Mobile Data Terminal MDT Tablet with 3G, GPS, Wifi, BT, CAN Bus, GPIO, RS422 ports

7 inch IP64 Rugged WinCE 7.0 / Android 2.3 Mobile Data Terminal MDT Tablet with 3G, GPS, Wifi, BT, CAN Bus, GPIO, RS422 ports

SKU : 60477657223

Price :
US $280 - 450 / Unit

* Special discount only for limited time

Product Name: 7 inch IP64 Rugged WinCE 7.0 / Android 2.3 Mobile Data Terminal MDT Tablet with 3G, GPS, Wifi, BT, CAN Bus, GPIO, RS422 ports

Port:	Xiamen
Supply Ability:	10000 Unit/Units per Month
Payment Terms:	L/C,T/T,Western Union,PayPal

Packaging Details:	Neutral / OEM
Delivery Details:	Shipped in 3 days after payment

Product Description

7 inch IP64 Rugged WinCE 7.0 / Android 2.3 Mobile Data Terminal MDT Tablet with 3G, GPS, Wifi, BT, CAN Bus, GPIO, RS422 ports

Overview:

Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.

Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.

It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.

Features:

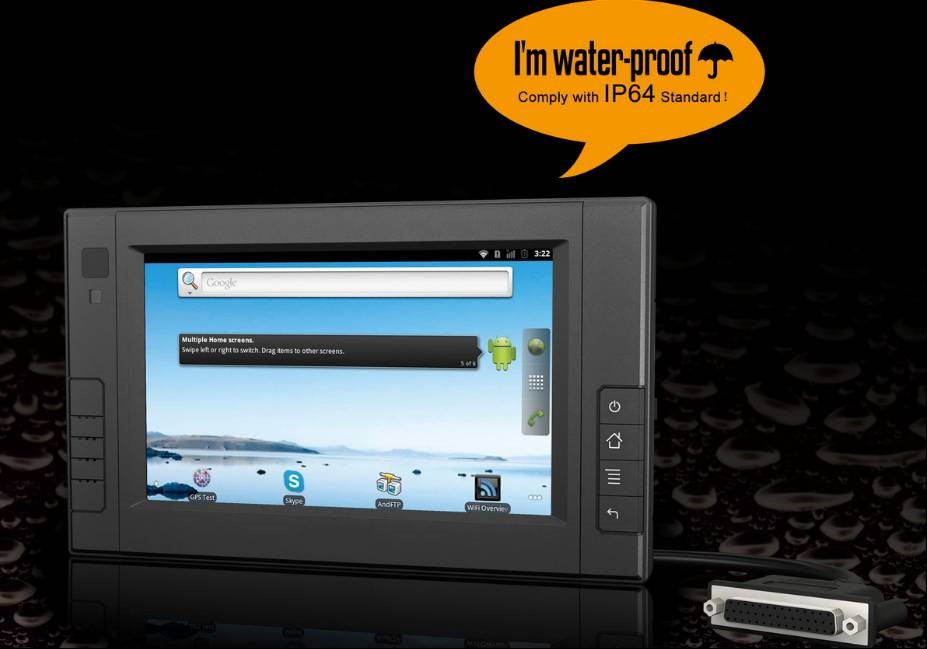

Comply with IP64 Standard, dust & water-proof
High-speed Freescale CPU inside
Wide powerer voltage
Keyboard or Mouse supports
Strong vibration resistance
USB Host 2.0×1, USB Device 2.0×1
RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1
GPIO input×4, GPIO output×6.

Specifications:

Display Screen	7" LED backlit
Resolution	800 x 480 (1,152,000 pixels)
Touch Panel	Capacitive
Brightness	450cd/m2
Aspect Ratio	16:9
OS	Android 2.3.4 / Linux 2.6.35 (Debian 6.0) / WinCE 7.0
CPU	Freescale iMX.53x 800MHz / 1.0GHz
Core	ARM Cortex-A8
Memory	RAM: 512MB DDR3 (Optional 1G) ROM: 4GB NAND FLASH (Optional 8G)
Expansion Storage	Micro SD (TF) card slot, USB Device 2.0, USB host 2.0
LAN	LAN Ethernet 10/100M (RJ45)
Interface	USB Host 2.0×1, USB Device 2.0×1 RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1 GPIO input×4, GPIO output×6
Audio	Ear phone jack x 1 Speaker (front) x 1
Speaker	1 W
Optional Extensions	3G\Wi-Fi & Bluetooth\Camera\GPS\CAN Bus
Power Consumption	9W
Working Temperature	-10 - 65ºC
Storage Temperature	-25 - 80ºC
Power Supply	DC 9-36V
Battery	Built-in 2200mAh (optional)
Dimension (LWD)	220 × 132 × 36.5mm
Weight	740g

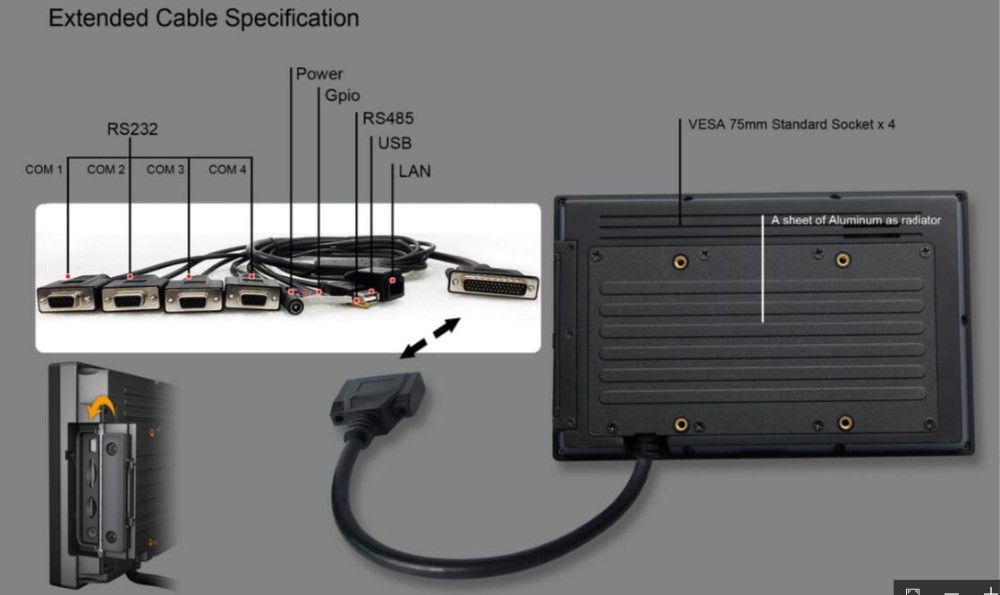

Accessories	1. Extended cable 2. Power adapter 3. Mini USB cable 4. Driver disk 5. Operation manual 6. Touch pen 7. VESA 75mm rail slot (optional) 8. VESA folding bracket (optional) 9. GPS antenna (optional) 10. 5000mAh Li-ion battery (optional) 11. Micro SD card (optional)

Detailed Images

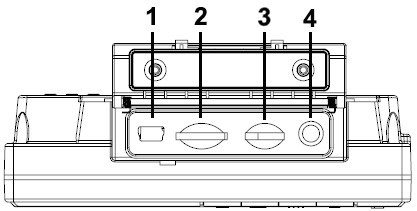

Interfaces

1. Mini USB port: To connect with USB cable.

2. 3G card slot: insert 3G SIM card to connect with wireless network.

3. Micro SD card slot: insert micro SD card to store pictures and other data.

4. Earphone jack: to connect with earphone.

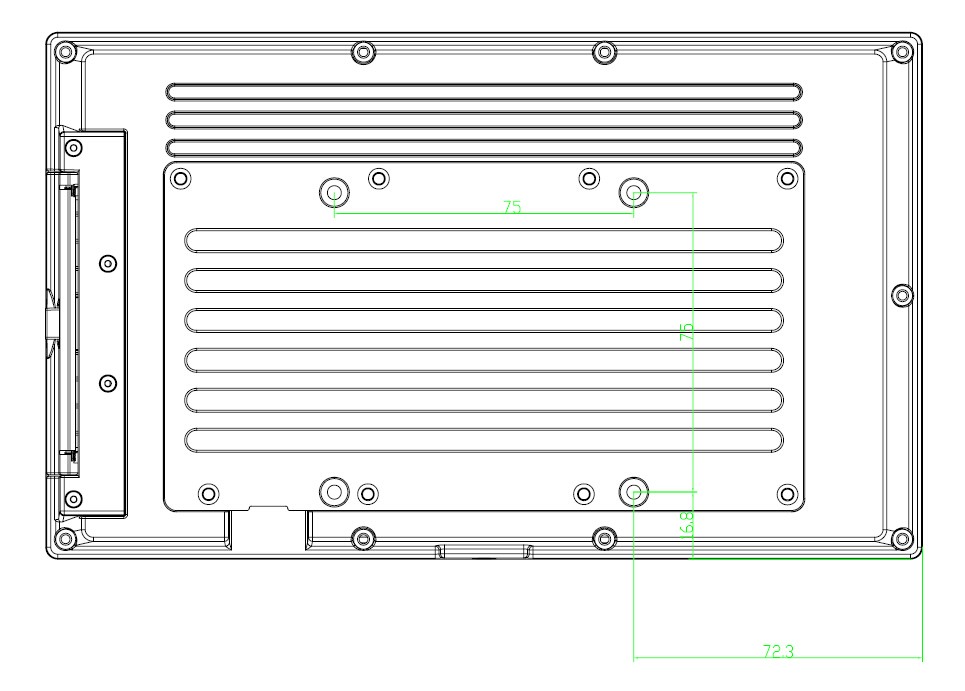

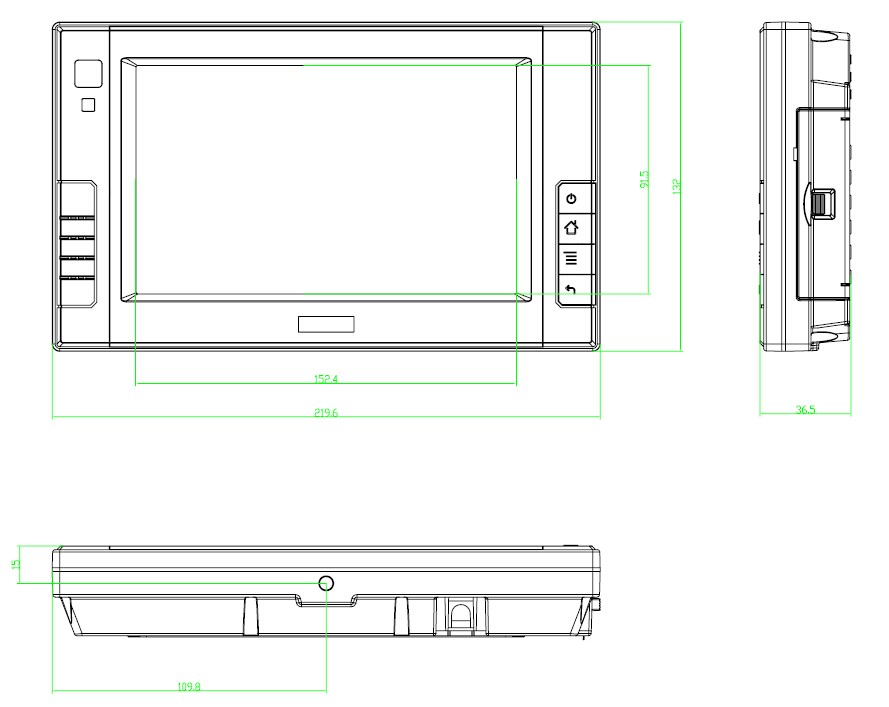

Dimensions

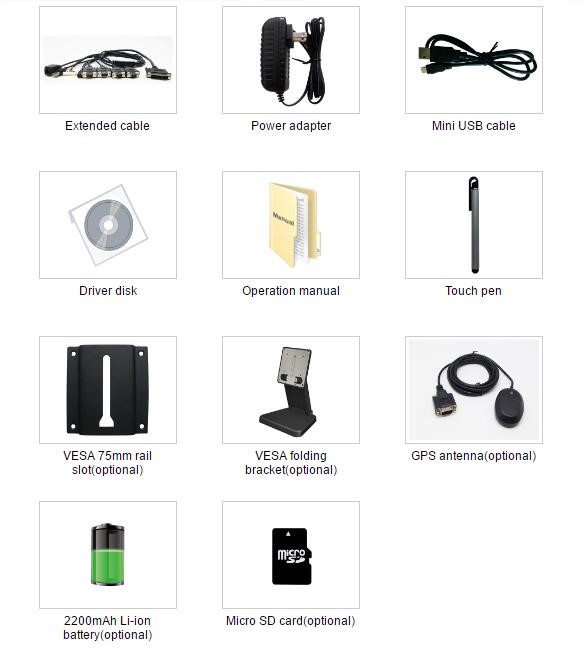

Accessories

Packing & Delivery

5pcs/ctn

61.5*36.5*21.5cm/ctn

11.3kg/ctn

Applications

Information Display

Digital Signage

Advertising Terminal

Service Kiosk

Industrial Control

Equipment Matching

In-Home Control Device

Smart Energy Application

Security & Surveillance

General Communication

Distance Data Acquisition

Basic A/V Player

Navigation System
